The inverter can convert the DC power into the required AC power. And within a certain time, the switching device can be turned on, off, and output, which can also play a role in protecting the circuit. For example, air conditioning, including some electric tools, as well as computers, range hoods, refrigerators, etc., household appliances need to be transformed through inverters in order to operate normally.
The inverters produced by Lipower are certified with international CE, ISO and other safety certificates. Our company strives to produce high-quality products for customers, ensuring their safety and enhancing their user experience.
The characteristics of Lipower products are high conversion efficiency, fast startup speed, and the inherent functions of short circuit, over temperature, and protection. The stability is also very strong during load operation, and the function is relatively stable. Whether it's in the office, such as computer scanners, or some small appliances in our daily lives, such as lighting fixtures, fans, or appliances that require batteries, such as phone numbers, QR cameras, etc., all need to be used for charging.
|

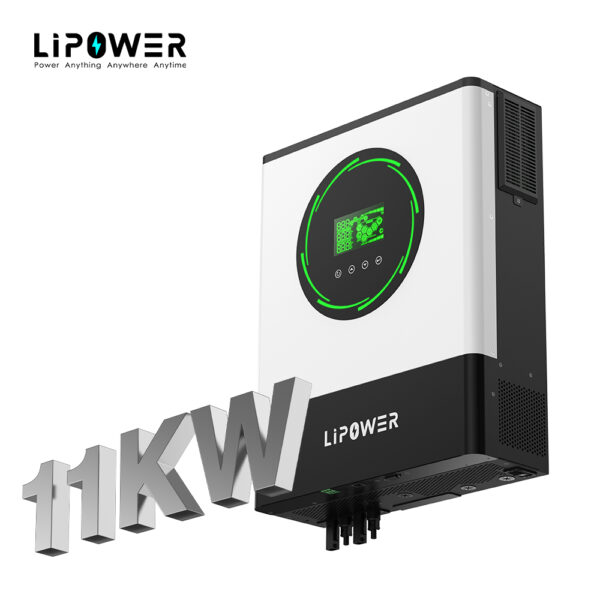

MODEL
|
8kW / 48V
|
11kW / 48V
|
||
|
The Rated Power
|
8000VA/8000w
|
11KW/11000W
|
||
|
Optional for Parallel Functions
|
yes 6 pcs
|
yes 6 pcs
|
||
|
BATTERY
|
||||
|
Battery voltage
|
48 VDC
|
48VDC
|
||
|
Floating Charge voltage
|
54 VDC
|
54 VDC
|
||
|
Overcharge Protection
|
63 VDC
|
63 VDC
|
||
|
INPUT
|
||||
|
Voltage
|
230 VAC
|
|||
|
Selectable Voltage Range
|
90-280 VAC (For Home Appliances), 170-280VAC (For Personal Computers)
|
|||
|
Frequency Range
|
50Hz/60 Hz (Auto sensing)
|
|||
|
OUTPUT
|
||||
|
AC Voltage Regulation (Ball. Mode)
|
230 VAC ± 5%
|
|||
|
Surge Power
|
16000VA
|
22000VA
|
||
|
Power Factor
|
1
|
|||
|
Efficiency (Peak)
|
90% ~ 93%
|
|||
|
Transfer Time
|
15 ms (For Personal Computers) ; 20 ms (For Home Appliances)
|
|||
|
Waveform
|
Pure sine wave
|
|||
|
MPPT SOLAR CHARGER & AC CHARGER
|
||||
|
Solar Charger Type
|
MPPT
|
|||
|
Maximum PV Array Power
|
4000W*2
|
5500W*2
|
||
|
MPPT Range @ Operating Voltage
|
90-450 VDC
|
|||
|
Maximum PV Array Open Circuit Voltage
|
500 VDC
|
|||
|
Maximum Solar Charge Current
|
120 A
|
150 A
|
||
|
Maximum AC Charge Current
|
120 A
|
150 A
|
||
|
Maximum Charge Current
|
120 A
|
150 A
|
||
|
PHYSICAL
|
||||
|
Packing Dimension, D*W*H (mm)
|
700*510*232
|
700*560*240
|
||
|
Net Weight (kgs)
|
18.4
|
19.5
|
||
|
Communication Interface
|
USB/RS232/RS485(BMS)/Local WiFi/Dry-contact
|
|||
|
OPERATING ENVIRONMENT
|
||||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|||
|
Operating Temperature
|
-10°C to 50°C
|
|||
|
Storage Temperature
|
-15°C to 60°C
|
|||
