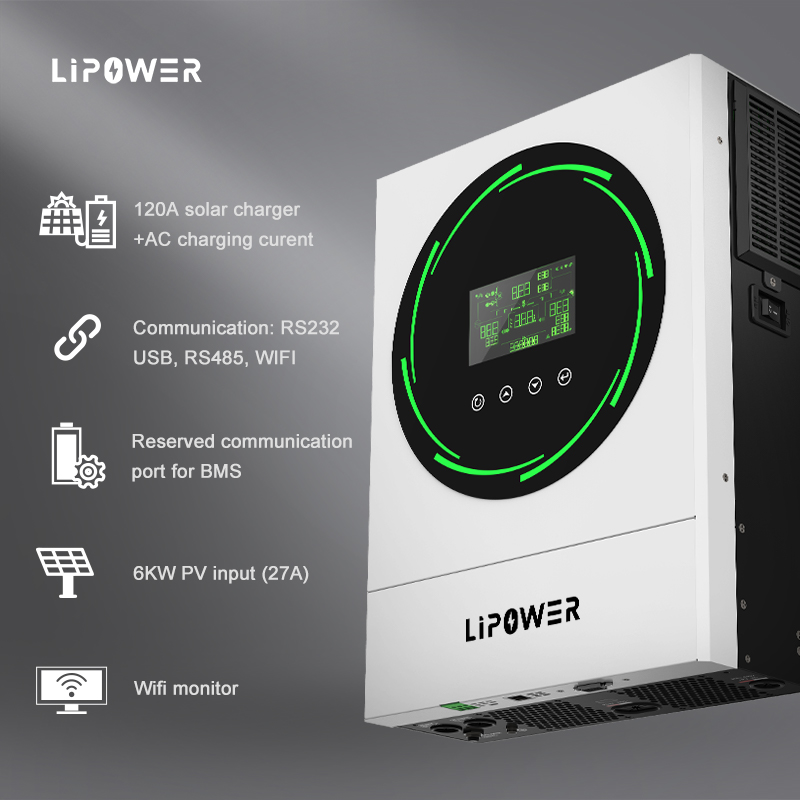

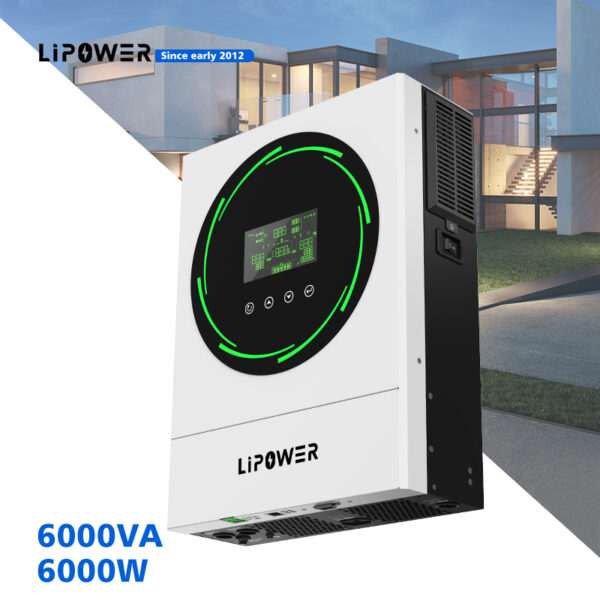

IN06000A – Solar Energy Storage Inverter

  • Model: IN06000A
  • Rated Power : 4000W/6000W
  • Size: 418*300*124
  • Weight: 10KG

Description

The inverter can convert the DC power into the required AC power. And within a certain time, the switching device can be turned on, off, and output, which can also play a role in protecting the circuit. For example, air conditioning, including some electric tools, as well as computers, range hoods, refrigerators, etc., household appliances need to be transformed through inverters in order to operate normally.

Lipower’s inverter supports multiple sockets and various small functions for customers to use, aiming to improve their user experience

Download

Product Documentation Download

📱 Portable Products Catalog

Complete specifications and parameters for all portable solar generator products



🔋 Energy Storage Catalog

Complete product information for energy storage systems, battery packs and accessories



📄 Current Product Manual



Click any button above to download the corresponding product documentation

Specifications

Technical Specifications

MODEL
INO4000A
INO6000A
The Rated Power
4000VA
6000VA
BATTERY
Battery voltage
24 VDC
48VDC
Floating Charge voltage
27 VDC
54 VDC
Overcharge Protection
33 VDC
63 VDC
INPUT
Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers); 90-280VAC (For Home Appliances)
Frequency Range
50Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Ball. Mode)
230 VAC ± 5%
Surge Power
8000VA
12000VA
Power Factor
0.95
Efficiency (Peak)
90% ~ 93%
Transfer Time
15 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform
Pure sine wave
 SOLAR CHARGER & AC CHARGER
Solar Charger Type
MPPT
Maximum PV Array Power
4000W
6000W
MPPT Range @ Operating Voltage
120-450 VDC
Maximum PV Array Open Circuit Boltage
500 VDC
Maximum Solar Charge Current
120 A
120 A
Maximum AC Charge Current
100 A
100 A
Maximum Charge Current
120 A
120 A
PHYSICAL
Dimension, D*W*H (mm)
115*300*400
115*300*400
Net Weight (kgs)
9.0
10.0
Communication Interface
USB/RS232/RS485(BMS)/Local WiFi/Dry-contact
OPERA TING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
-10°C to 50°C
Storage Temperature
-15°C to 60°C
